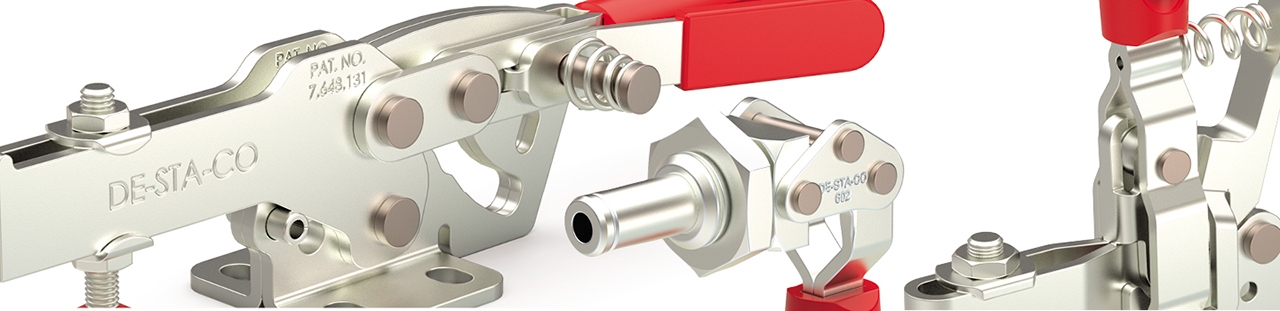

Hold Down Clamps

LOW-PROFILE, MANUAL HORIZONTAL HOLD DOWN CLAMPS – 227 SERIES

DESTACO’s 227 Series horizontal hold down clamps feature a low profile design, availability in stainless steel models, and large handle clearance in the open position. These clamps are used in assembly, fixture checking, woodworking, and closures.

Features

Holds up to 1,680 lbs (7.5 kN) capacity
Heavy Duty horizontal clamps with high strength and long life.
Low height design
Many equipped with DESTACO Toggle Lock Plus®, an innovative safety feature that adds a secondary lock to the clamp to help ensure that the over-center locking condition is maintained and protected against unintentional opening.
Low silhouette hold down clamp features a handle that can be operated from either side or from behind
Unique standard design gives greater hand clearance between the bar and handle, providing optimal overhead clearance.

Markets

Aerospace
Automotive
Food and Packaging
Consumer Goods
Industrial

Applications

Fixturing and Testing

Product	Short Description	Product Type	Standard Material	Base Mounting Style	Handle Color	Service Environment	Clamp Arm Length (in)	Maximum Holding Capacity (N)	Handle	Clamp Arm Style	Handle Opening (+10°)	Height Under Clamp Arm (in)	Maximum Holding Capacity (lbf)	Accomodates Workpiece Variation	Clamp Bar Opening (+10°) (degrees)	Weight (lbs)
227-U	Flanged Base, U-Bar	Horizontal Hold-Down Toggle Clamp	Steel	Flange	Red	Normal	2.65	2220	Horizontal	U-Bar	56	1.25	500	No	91	0.68
227-U-B	Straight Base, U-bar	Horizontal Hold Down Clamp	Steel	Flange	Blue	Normal	2.65	2220	Horizontal	U-Bar	56	1.25	500	No	91	0.68
227-U-G	227-U with Green Handle	Horizontal Hold Down Clamp	Steel	Flange	Green	Normal	2.65	2220	Horizontal	U-Bar	56	1.25	500	No	91	0.68
227-U-K	227-U with Black Handle	Horizontal Hold Down Clamp	Steel	Flange	Black	Normal	2.65	2220	Horizontal	U-Bar	56	1.25	500	No	91	0.68
227-U-L	Flanged Base, Open Bar	Horizontal Hold Down Clamp	Steel	Flange	Red	Normal	2.39	2220	Horizontal	Open U-Bar	56	1.25	500	No	91	0.68
227-U-Y	227-U with Yellow Handle	Horizontal Hold Down Clamp	Steel	Flange	Yellow	Normal	2.65	2220	Horizontal	U-Bar	56	1.25	500	No	91	0.68
227-UB	Straight Base, U-bar	Horizontal Hold Down Clamp	Steel	Straight	Red	Normal	2.65	2220	Horizontal	U-Bar	56	1.45	500	No	91	0.68
227-UB-L	Straight Base, Open Bar	Horizontal Hold Down Clamp	Steel	Straight	Red	Normal	2.39	2220	Horizontal	Open U-Bar	56	1.45	500	No	91	0.68
227-USS	Stainless Steel 227-U	Horizontal Hold Down Clamp	Stainless Steel	Flange	Red	Normal	2.66	2670	Horizontal	U-Bar	56	1.28	600	No	91	0.68
